The 3-piece EZ-BS25 is our HIGH Capacity 2.5” Sch 80 Double Wall extended Electric Hauler. The package includes our time tested water resistant 2.4 hp 901 Silver express 12v DC motor. A permanently sealed cast aluminum gearbox containing 1 piece steel and bronze alloy gears with roller bearings, for unsurpassed strength, in a synthetic oil bath for long life. High amp 12v on/off switch assembly with a 14 ft. 8-gauge wire harness and 100 amp auto reset circuit breaker assembly.

This unit can be configured with our Power Grip Anodized Aluminum sheave for pots/traps with grease-able machined UHMW v-roller assembly, open face aluminum crab block with s/s quick link and s/s davit pin for pulling pots/traps.In this configuration it would also have our Hands Free line tensioner.

We can configure it with our 6" Drum and Dynema line, paired with a special cast Aluminum 1000lbs block for heavy lifting up to 500lb.

We have designed the BS25 with a 8" diameter dual flange with UHMW wear plates and bushings to provide ease of rotation with loads.

The EZ-BS25 also comes with our Line Tension device.

This unit is typically a weld in unit in Aluminum Boats but can be configured as a bolt in unit as well.

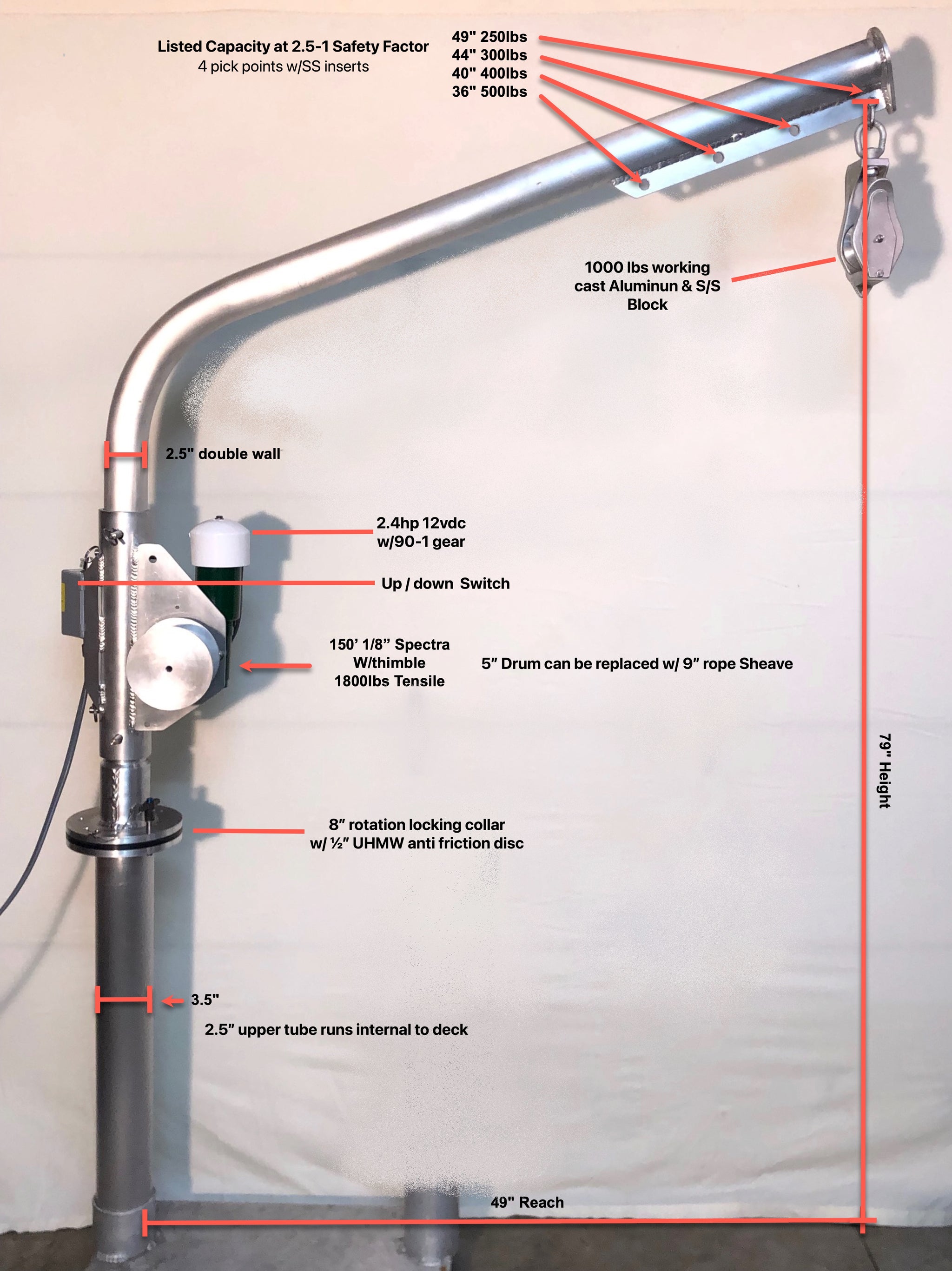

The EZ-BS25 davit unit is 79“ tall and has a reach of 49“.

The unit comes with a 1 year manufactures defect warranty.

Does not include the mounts.
